39.3" X 23.6" Brand New Atrump Heavy Duty CNC Machining Center, Mdl. EL32S, Centroid’s Easy Conversational Programing OAK PRO License, Huge 15" Color Touch Screen, 60GB Reliable SSD, RS232 and 2USB ports for easy data X-fer., C2 Class Ball Screw is Pre-loaded to Reduce the Effects of Heat Deformation., Meehanite castings, Box Way design on the Y and Z axes., 100% Laser tested and calibrated positioning accuracy and repeatability., High speed Delta AC motors and Drivers and Spindle inverter., #SMELS32S

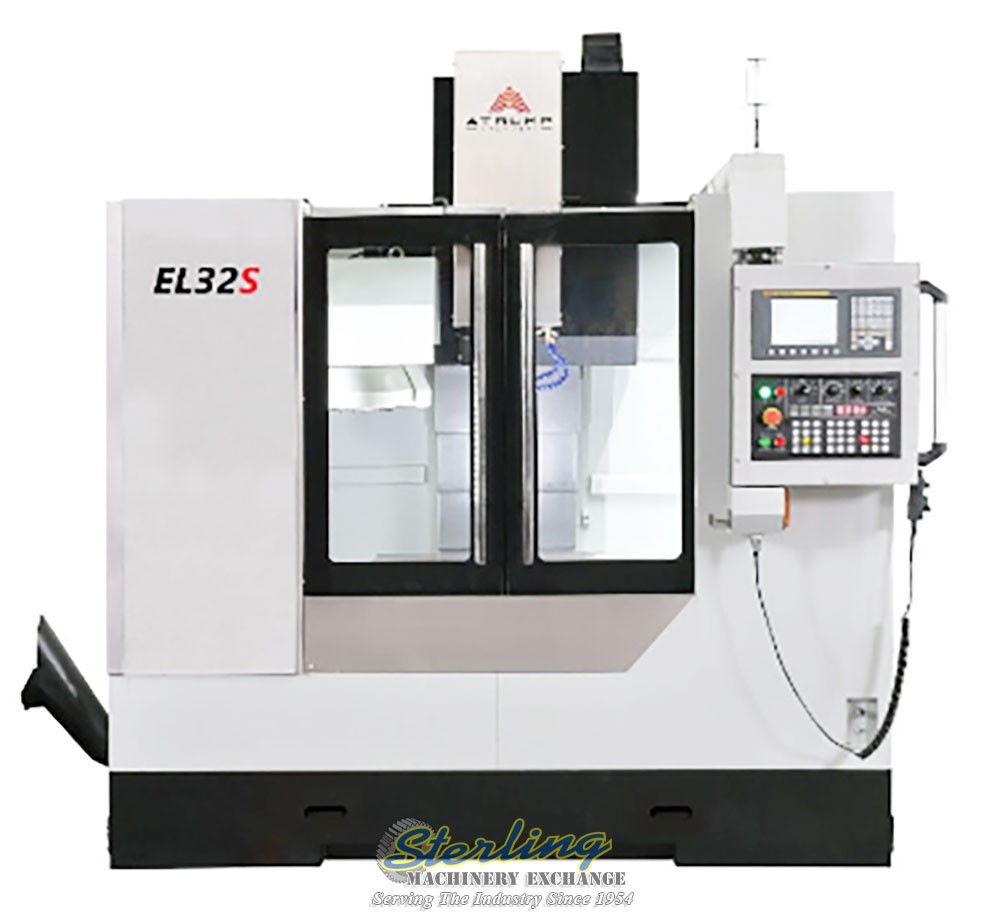

Brand New Atrump Heavy Duty CNC Machining Center

Atrump
Stock No: #SMELS32S
Manufacturer: Atrump
Model: EL32S
Capacity: 39.3" X 23.6"
Condition: New
Starting At:
Call for Price
discount
DETAILED SPECIFICATION
X Travel 29.3" (745mm)
Y Travel 17.7" (450mm)
Z Travel 21.6" (500mm)
Spindle Nose To Tabletop3.9" to 25.6" (100- 650mm)
Table Load Capacity 990 LBS (450KGS)
T-Slot (5)0.7" x 3.14"
Spindle Tapper CAT40/BT40
Programable Spindle Speed8000rpm
Transmission Spindle Motor Belt / Direct drive (OPT)
Rapid Feed Rate X/Y/Z1000/1000/800 ipm
Cutting Feed Rate1 to 393 IPM
Spindle Motor / Max Power 10HP (Optional:15HP)
Servo Motors ON XYZ1.8 kW / 1.8 kW / 3 kW
Tool Magazine Capacity Armless 16 tools
Max Tool DIA Ø 3.1"
Adj. Pocket EmptyØ 3.54"
Max Tool Length 11.8" (300mm)
Max Tool Weight 15.4lbs Total:176lbs
Floor Plan 97.2'' x 86.6'' x 88.9''
Net Weight 9,240 LBS. (4200KGS)
Power Requirement 17 KVA 3 phase 208V-230V
Air Requirement 70-100 psi (5~8 kg/cm^2)
Oil Way Recommended Mobil Vectra #2
Optional Chillier Oil Shell Tellus 32
EQUIPPED WITH
Centroid’s Easy Conversational Programing OAK PRO License
Huge 15" Color Touch Screen
60GB Reliable SSD
RS232 and 2USB ports for easy data X-fer.
C2 Class Ball Screw is Pre-loaded to Reduce the Effects of Heat Deformation.
Meehanite castings, Box Way design on the Y and Z axes.
100% Laser tested and calibrated positioning accuracy and repeatability.
High speed Delta AC motors and Drivers and Spindle inverter.

* Temporary specifications subject to verification.

   All quotations subject to prior sale.

   New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
